Pulse Massage Insole User Manual
Share
Product Overview
This pulse massage insole integrates smart technology, connecting to mobile devices
via OTG for convenient foot - care massage. It features multiple massage modes and
intensity adjustments, aiming to relieve foot fatigue.
Technical Parameters
- Product Name: Pulse Massage Insole
- Power: 5W
- Voltage: 5V
- Executive Standards: GB4706.1–2005; GB4706.10–2008

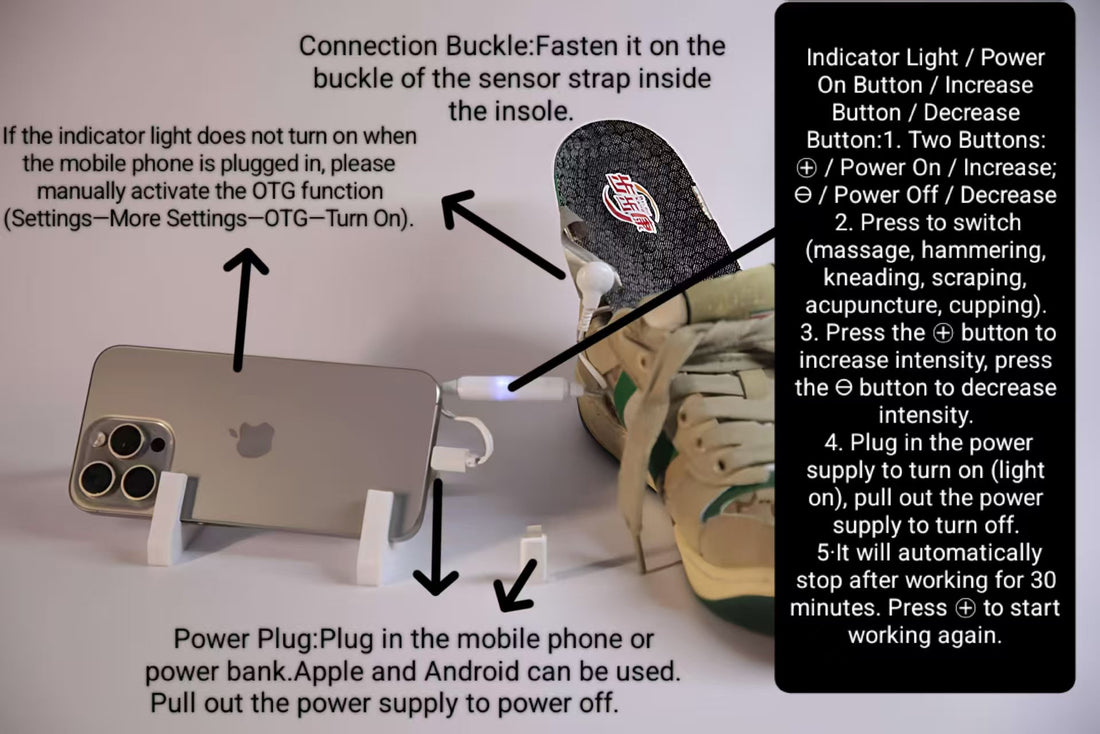

Product Components
- Massage Pad: Main part for foot pulse massage.
- Type - C/OTG Connector: Links to mobile devices.
- Indicator Light: Shows working status.
- Control Buttons: For mode/intensity adjustment.
Operation Guide
1. Connection
Connect the insole to your mobile device via OTG (Type - C port). Ensure the device
supports OTG function.
2. Power - On & Mode Selection
- Short - press the power button to turn on; the indicator light shows it’s working.
- Press mode buttons to switch: Kneading, Acupuncture, Scraping, Cupping (4 preset
modes).
3. Intensity Adjustment
- Press“+”/“-”buttons to increase/decrease massage intensity (5 levels optional).
4. Power - Off & Standby
- Long - press the power button to turn off.
- If no operation for 5 minutes, it enters standby; re - activate by pressing any
button.
Precautions
1. Device Compatibility
- Works with mobile devices supporting OTG (output 5V/1A).
- Not for medical - grade electronic devices (e.g., pacemakers).
2. Safety Warnings
- Don’t use if you have skin injuries, heart disease, or are pregnant.
- Stop using immediately if you feel discomfort (numbness, pain).
3. Maintenance
- Keep dry; don’t expose to water/high temperature.- Don’t disassemble the insole privately to avoid damage.
4.Note for iphones: The insole may not function properly when the iphone is locked.
Warranty & After - Sales
1. Warranty Scope
- Free repair/replacement for non - human - caused malfunctions (e.g., circuit issues,
button failures) within 1 year.
2. Warranty Exclusions
- Damage from improper use (water contact, disassembly).
- Wear - and - tear parts (massage pad surface) are not covered long - term.
